Scissor Hoist Hydraulic Cylinder
As a professional telescopic hydraulic cylinder manufacturer and supplier, Bos-Hyd has been supplying and exporting hydraulic cylinders from China for almost 30 years, Any inquiries and problems please feel free to send emails to us via , we will reply you within 1 working day.

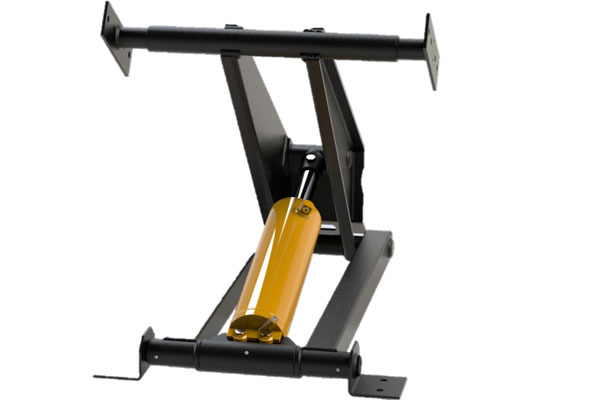

DOUBLE ACTING HYDRAULIC CYLINDER-FOR SCISSOR HOIST
Features
ROD: Steel, induction hardened to 45 ~ 50 Rockwell C and chrome plated 0.001” thick for a final surface hardness of
69 ~ 71 Rockwell C. ASTM B117-07a salt spray testing 96 hours.
PISTON: Steel, for increased durability.
TUBE: Steel, honed and precision finished.
CONSTRUCTION: Heavy duty welded construction.
GLAND: Threaded
PORTS: Standard SAE#6.
SEALS: Top quality
PAINT: High quality paint for corrosion resistance up to 360 hours.
Stroke:50mm—16000mm
Inside Cylinder Tube Dia: 40 – 1000 mm (1.5 – 40 inch)
Liner material: copper (prolongs the life cycle of cylinder)
Hydraulic cylinder tube material: Carbon steel, Alloy steel, Stainless steel
Piston Rod Dia:
12 – 500 mm (1/2 – 20 inch) Hydraulic Piston Rod should be hard chrome plated to minimum thickness of 35-55 microns and polished to 0.15 um Ra
Chrome Plated: Cr, Ni or Ceramic
Design Pressure: Max 700 bar (10150 PSI)
Valves: SUN (USA),or famous Chinese brand with same quality to PARKER
Seals Type: PARKER (USA), MERKEL (Germany) or NOK (Japan)
Liner material: copper (prolongs the life cycle of cylinder)
Bearings: LONGXI (China) or SKF
Painting: follow with customer requirement or 3-coat marine painting
Application: Shipbuilding, offshore oil & gas engineering,Photovoltaic & wind power. construction machinery (excavator loader Crane/ snowplow/sanitation vehicle), agricultural machinery, hydraulic engineering, heavy machinery
