ST52 BK+S Honed Tube For Hydraulic Cylinder

ST52 BK+S Honed Tube For Hydraulic Cylinder

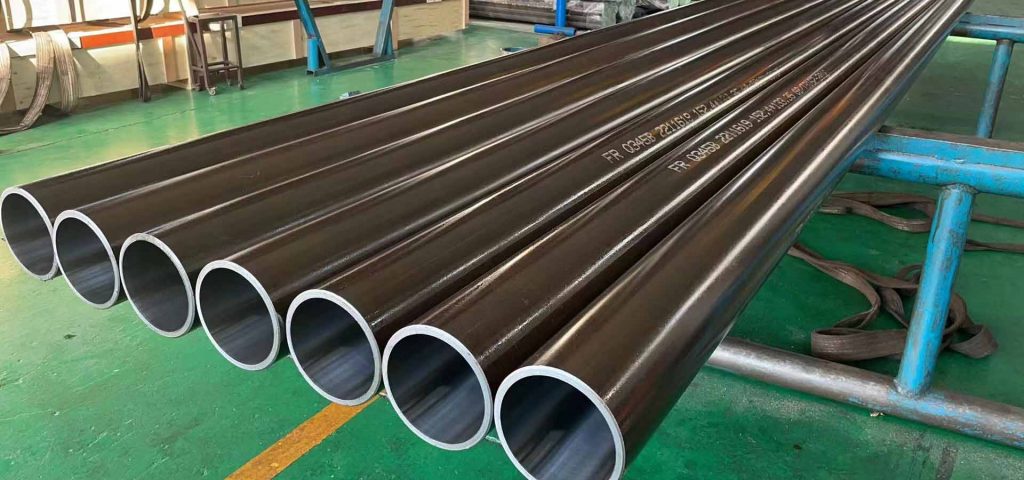

ST52 BK+S honed tube is shaped in the form of a cylinder barrel and is attached to hydraulic fluids allowing for movement of fluids in and out of the grade. These tubes cover the specification of ;ST52 steel cold drawn tube ;and precision steel tubes of seamless types. ST52 Honed Cylinder Tube is part of a 유압 실린더 that has a smooth surface finish on the interior of the bore.

DIN 2391 ST52 nbk is a precision mild or low carbon grade. The DIN 2391 ST52 NBK Tube ;is capable of withstanding high temperatures. These tubes are produced in the normalized condition in controlled setups. The ST52 S355 Annealed Tube ;is annealed above the upper transformation point. The annealed tubes showcase good tolerance to reducing environments.

The Specifications Of ST52 BK+S Honed Tube

Material : ST52,ST52.3

Delivery Condition : BK, BK+S, GBK, NBK

ID Size : 20mm – 1500mm

Length : max 16m

Type : Seamless, Hot Rolled, Cold Rolled, Cold Drawn

Straightness : ≤ 0.5/1000

Roughness : 0.2-0.4 um

Tolerance EXT : DIN2391, EN10305, GB/T 1619

Tolerance INT : H7,H8,H9
